DPF - Worldwide,
Workable Fusion

DPF, or dense plasma focus, first reported from out of the USA and the USSR in the early 1960s, shows great promise for cheap, clean alternative power generation.

History

Building on some immediately earlier work and ideas, J. W. Mather in Berkeley, California and N. V. Filippov in Moscow, USSR independently developed dense plasma focus devices.

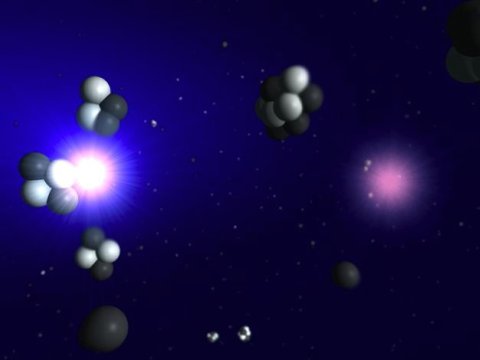

dpf stylised proton boron reaction

Their ideas began a trend that has persisted to this day with a number of machines employing the same principles around the world. There is an established network feeding back information on the various units.

The results can be readily reproduced and are predictable. The specific charge, gas environment and pressure for the best results can be easily calculated.

One site in Singapore which co-ordinates a number of installations has a downloadable table to calculate the appropriate size for each unit.

The construction below from Chile gives an idea of how small the units can be.

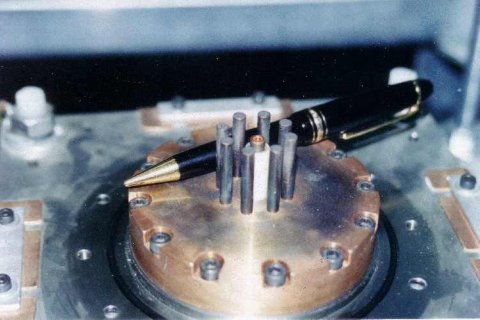

the dpf Nanofocus Micro Unit Developed In Chile

Although this one is quite tiny, they can also be built to large dimensions.

What exactly happens with dpf?

The aim is to create a fusion reaction as well as other outputs such as the production of X-rays.

Unit Design

Utilising an anode and cathode array, with insulation between the initial part, a charge is fired from a capacitor bank into an appropriate gas field.

dpf Illustration of Progress Shot Series Number 1

As the charge passes down the anode and conducts beyond the insulated area a charged sheath occurs in the plasma generated from the gas communicating with the cathode array.

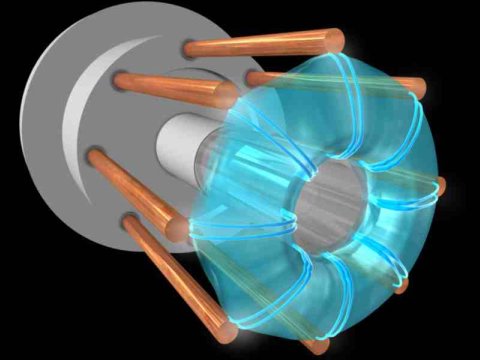

dpf Shot Series Number 2 Illustration

The electrical arc continues down the array as the charge advances down the anode.

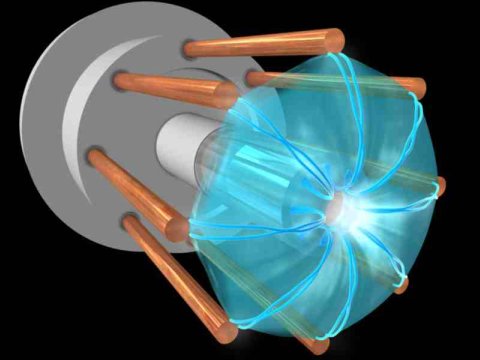

dpf Shot Series Number 3

As it approaches the anode tip the sheath of plasma compresses down on itself creating a pinch effect.

dpf Shot Series Number 4

The plasma aligns with applied electric and associated magnetic fields it begins spiraling in on itself.

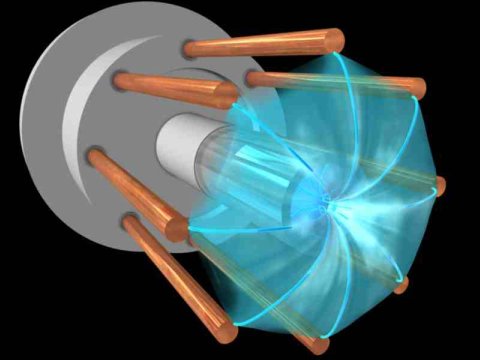

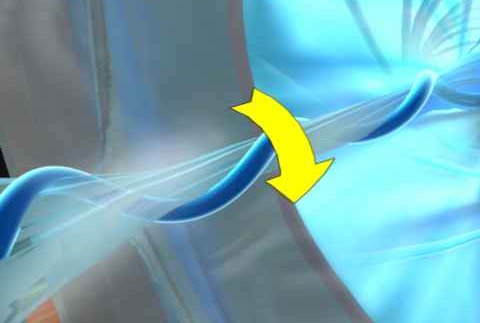

dpf Shot Series Number 5 showing pinch beginning

This creates an increasing force within the intense generated plasma field that spirals ever tighter on itself.

dpf Shot Series Number 6

This spiral itself causes further spiraling of the already spiraled field.

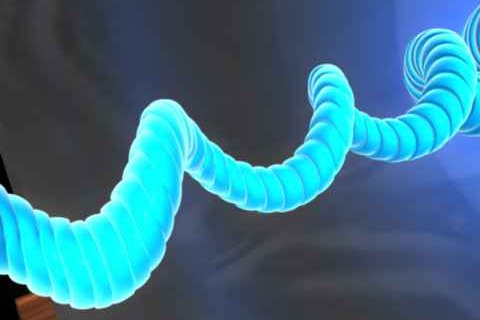

dpf Shot Series Number 7

This further contortion produces further tightening and compression creating a smaller and smaller energized plasma field.

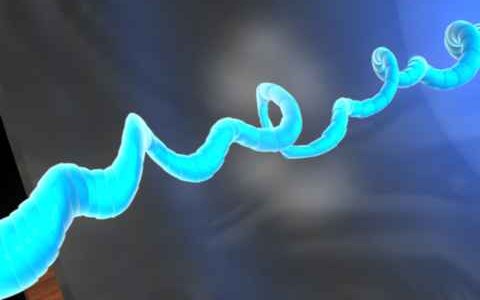

dpf Shot Series Number 8

Finally this results in an intense focus which causes a plasmoid to be produced with increasing local heat and pressure (from the induced electromagnetic effect of passing the current through the plasma) along with any extra externally applied magnetic field.

dpf Shot Series Number 9

With the self-induced electromagnetic forces the plasmoid compresses down on itself to an even smaller unit size.

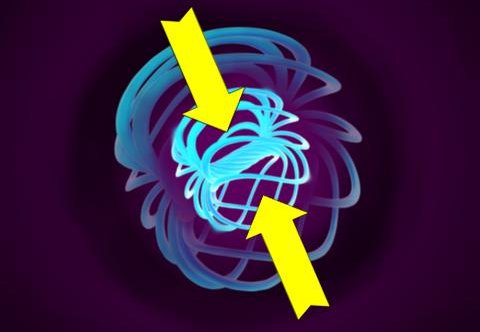

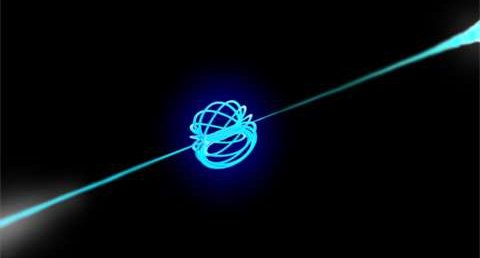

dpf Shot Series Number 10

Spiraling forces contribute to this as well.

Fusion can occur.  Even from the earliest time, with a deuteron fuel, a large number of neutrons could be produced in a "gun" effect indicating fusion was occurring.

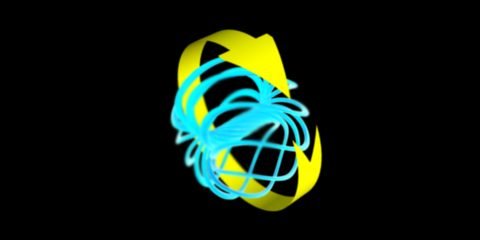

dpf Shot Series Number 11

In the process a beam of ionized particles shoots out either end, electrons in one direct and nucleic particles in the other.

Electricity Production

If this charged beam is harvested through an induction-type coil, an electric current can be produced.

This allows for direct production of electricity, by-passing energy losing intermediate elements of external materials heating to cause the driving of turbines - the way produce much of our electricity today.

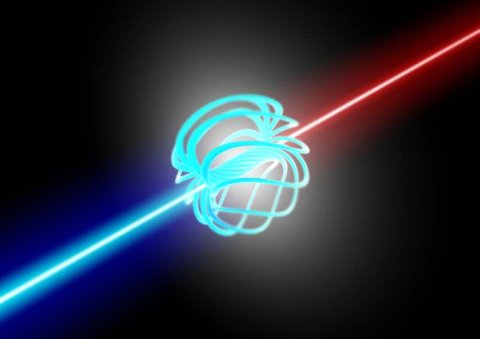

dpf Shot Series Number 12

Alternative Fuels

Alternative plasmas can result in different reactions.

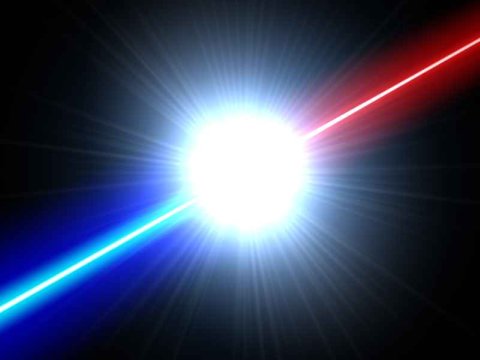

dpf Shot Series Number 13

Like the plasma focus device which is planned for a proton-boron fuel and produces helium as a by-product.

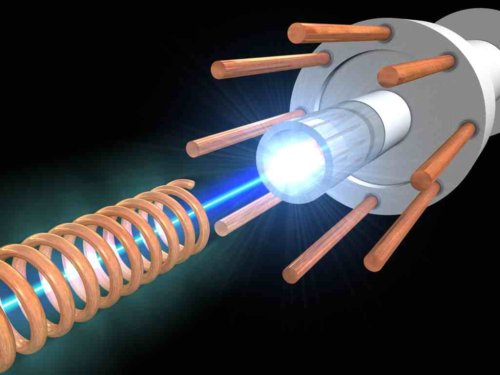

dpf Shot Series Number 14

Dpf, or dense plasma focus hints at a possible future energy source in a relatively uncomplicated way.
